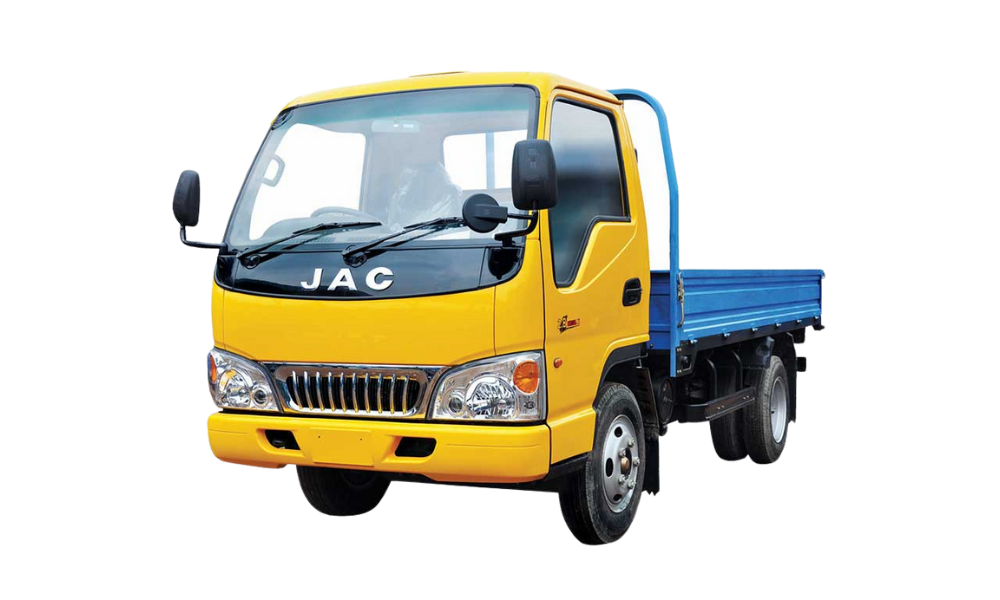

The JAC HFC1020KD is a robust 1.5-ton pickup engineered for reliability and efficiency in demanding commercial environments. Powered by a high-performance diesel engine comparable to Japanese ISUZU standards, it ensures excellent fuel economy and low maintenance costs. Its compact 6-meter turning radius and tilt-type cabin enhance maneuverability and ease of maintenance. The spacious cargo area and comfortable, adjustable cabin with a roof ventilation make it a versatile choice for businesses seeking durability and driver comfort.
JAC HFC1020KD Specification
| Category | Details |
|---|---|
| Model | HFC1020KD |
| Drive Mode | RHD 4×2 |
| Emission Standard | EURO-I |
| Engine Model | HFC4DA1 |
| Engine Type | In Line-4 Cylinder, Naturally Aspirated Diesel |
| Displacement | 2771 cc |
| Max. Power | 77 hp / 3600 rpm |
| Max. Torque | 174 N.m / 2000-2200 rpm |
| Fuel Tank Capacity | 90 L |
| Transmission | JAC MSB-5M, 5-speed manual |
| Overall Size (L*W*H) | 5300 x 1850 x 2180 mm |
| Cargo Dimensions (L*W*H) | 3500 x 1850 x 440 mm |
| Wheelbase | 2800 mm |
| Turning Radius | 6 m |
| Curb Weight | 1497 kg |
| Max Load Capacity | 1493 kg |
| Gross Vehicle Weight | 2990 kg |
| Seating Capacity | 2+1=3 |
| Braking System | Hydraulic Brake (Drum) |
| Tyre Size | 6.50R16 |
| Ground Clearance | 185 mm |
JAC HFC1020KD Configuration
|
|
